TD301MCAN and TD501MCAN series are cost-effective CAN bus transceiver module which integrate power isolation, signal isolation, CAN transceiver and bus protection in one module. The series convert TTL/CMOS level to difference level of CAN bus to achieve signal isolation. Moreover, TD301MCAN/TD501MCAN feature 2500VDC electric isolation and miniature package which enable them better embedded in users’device to easily achieve connectivity functions of CAN bus network.

With rapid development of intelligent electronics, CAN bus gets troubles of load limitation. To address the problem, MORNSUN TD3(5)01MCANFD series is an alternative which upgrades TD-MCAN series and further promote data transmission rate to 5Mbit/s. The two series come in a same package and both are pin-compatible, which make it convenient for customers to choose according to system’s communication protocol. They are suitable for automotive electronics, instrumentation, etc.

Features:
Meet ISO 11898-2standard/ISO 11898-5 physical layer standard
Isolation: 2500 VDC ( input and output terminal are mutually isolated)
Bus timeout protection
Baud rate high up to 5Mbps (TD-MCANFD) / 1Mbps (TD-MCAN)
Operating temperature:-40℃ to +105℃
Suitable for 12V, 24V system
Compact size, standard DIP8 package

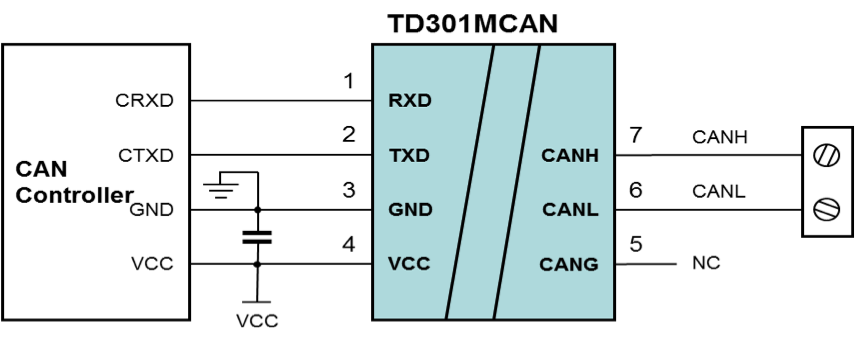

Application:
