The Uptime Institute’s Tier standard is a globally recognized framework that classifies data centers into four tiers based on their infrastructure’s reliability, redundancy, and fault tolerance. These tiers—Tier I through Tier IV—provide a benchmark for data center performance, ranging from basic infrastructure (Tier I) to fully fault-tolerant systems (Tier IV). Each tier reflects specific design and operational criteria, such as uptime guarantees and maintenance capabilities, enabling businesses to select a standard that aligns with their operational needs and resilience goals. The Tier standard is widely used to ensure consistent and reliable data center performance across industries.
The Uptime Institute’s Tier standard classifies data centers into four levels based on their infrastructure’s reliability, redundancy, and fault tolerance. The data center Tier levels are:
- Tier I—Basic Capacity. This tier is designed for small-scale operations with minimal redundancy. It offers 99.671% availability, but is susceptible to outages during maintenance or failures.
- Tier II—Redundant Capacity Components. This tier adds redundancy for critical components like power and cooling. It offers 99.741% availability and can handle partial maintenance without shutting down operations.
- Tier III—Concurrently Maintainable. This tier ensures N+1 redundancy, allowing maintenance without downtime. It offers 99.982% availability and is ideal for businesses needing 24/7 operations with minimal interruptions.
- Tier IV—Fault Tolerant. This tier has fully redundant systems with 2N+1 configuration, featuring independent paths for both power and cooling. It offers 99.995% availability and is capable of withstanding unplanned outages without affecting operations.
Each tier aligns with specific operational needs, from basic infrastructure (Tier I) to highly resilient systems (Tier IV). In an era where data is the backbone of modern enterprises, the need for reliable and resilient data centers is more critical than ever. Companies are increasingly turning to the Uptime Institute’s Tier III standard to ensure their data centers achieve high levels of availability and fault tolerance. The Tier III standard, known for its rigorous specifications, has become a popular choice among organizations seeking to minimize downtime and maintain continuous operations.
The Uptime Institute’s Tier III standard is designed for data centers that require a high level of availability while allowing for maintainability without interrupting operations. As alluded to above, Tier III data centers must have N+1 redundancy, meaning there is at least one backup component (such as an uninterruptible power supply or generator) for every critical system. This ensures that the facility can undergo routine maintenance or repairs without shutting down operations, making it an ideal solution for businesses that rely on 24/7 access to their data and information technology (IT) systems.
Key Electrical System Design Requirements for Tier III Data Centers
Designing an electrical system that meets the Uptime Tier III standard requires careful planning and execution. Below are some essential design solutions to achieve compliance.
Redundant Power Distribution Systems. One of the primary requirements of a Tier III data center is a fully redundant power distribution system. This includes dual power sources (A and B) feeding each rack, ensuring that if one power source fails, the other can seamlessly take over. Each power source should have its own independent path, with separate cables, circuit breakers, and switchgear to prevent single points of failure.
Uninterruptible Power Supply (UPS) Systems. Tier III data centers need robust UPS systems to maintain power continuity during outages. These systems provide critical power backup for short durations until standby generators can start up. To comply with Tier III standards, the UPS systems should be configured in an N+1 redundant architecture, allowing for one additional unit to be available in case of failure.
Standby Generators for Extended Power Outages. In addition to UPS systems, Tier III data centers must have standby generators that can sustain operations during extended power outages. The generators should have enough fuel storage for at least 12 hours of operation and be designed for rapid start-up. Regular testing and maintenance are crucial to ensure these generators are ready to take over immediately when needed.
Dual-Corded IT Equipment. To fully leverage the redundancy of the power distribution system, all critical IT equipment within a Tier III data center should be dual-corded. This means each piece of equipment should have two power inputs connected to separate power sources. If one power source fails, the equipment automatically draws power from the other, ensuring uninterrupted functionality.
Fault-Tolerant Electrical Design. A fault-tolerant electrical design is essential to meet Tier III standards. This involves implementing measures such as automated transfer switches (ATS) and static transfer switches (STS) to allow seamless switching between power sources without human intervention. Additionally, electrical circuits should be isolated to prevent cascading failures in case of a fault in one section of the system.
Regular Maintenance Without Downtime. One of the most significant advantages of a Tier III design is its ability to undergo planned maintenance without impacting operations. This is achieved through redundant infrastructure, allowing sections of the system to be taken offline for maintenance while other sections continue to operate.
Proper maintenance protocols and schedules should be established to ensure all components are in optimal condition and backup power systems can sustain operations for a minimum of 72 hours during external outages. Diesel generators, combined with UPS systems, provide this extended runtime. These systems are meticulously tested to ensure reliability during prolonged disruptions, making Tier 3 data centers highly dependable for critical applications
Challenges and Solutions in Designing Tier III Electrical Systems
While designing an electrical system to meet Tier III standards offers numerous benefits, it also presents certain challenges. Some of these are:
- High Initial Investment. The cost of implementing redundant systems, UPS units, and standby generators can be significant. However, the investment is justified by the long-term benefits of reduced downtime and increased reliability.
- Complex Design and Implementation. Achieving Tier III compliance requires a thorough understanding of electrical engineering principles and data center requirements. Engaging experienced professionals in the planning and execution stages can help mitigate the complexities involved.
- Space and Energy Efficiency. Tier III data centers typically require more space and energy than lower-tier facilities due to their redundant systems. Designing for energy efficiency, such as using high-efficiency transformers and optimizing cooling systems, can help offset these additional requirements.
A Design Case in Vietnam

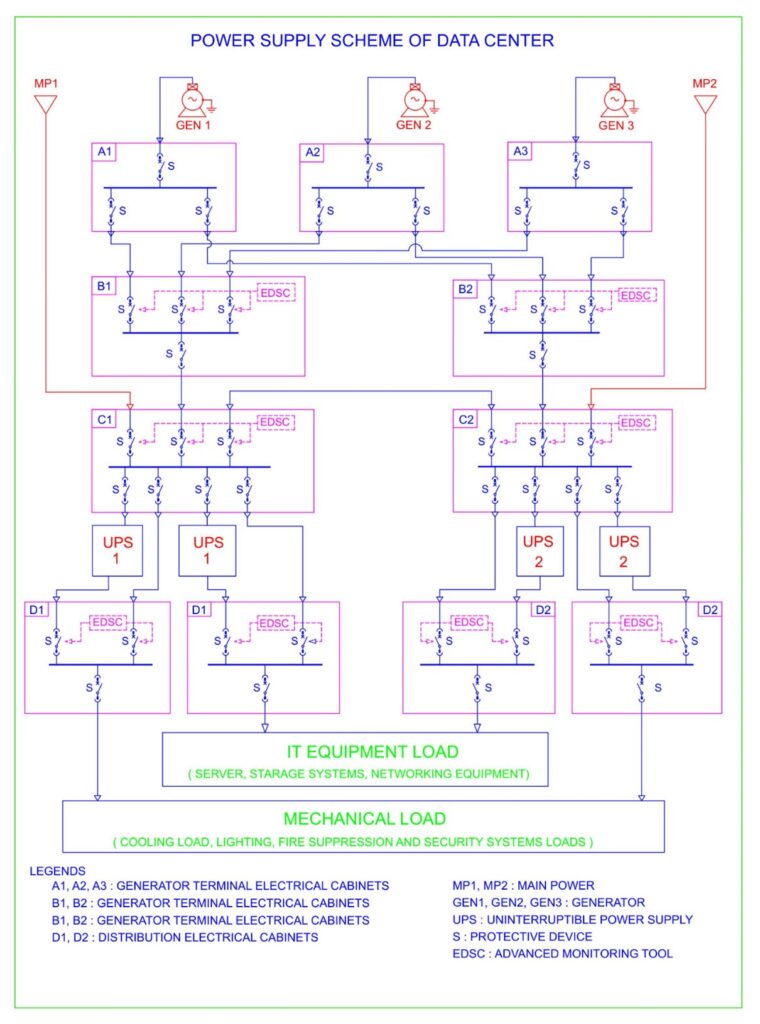

Figure 1 shows a power supply scheme of a local data center project completed by CTCI Vietnam following Uptime Tier 3 standards. Note how the following items fortify data center operations.
Redundant Infrastructure (N+1 Configuration). Redundancy is a cornerstone of Tier III designs, ensuring that no single point of failure disrupts operations. The N+1 redundancy approach ensures that every critical component—main power supply, generators, and UPS units—has a fully functional backup to maintain continuous power. To better understand the redundancy, consider the following cases:
- Case 1. If MP1 (Main Power 1) fails, MP2 (Main Power 2) will immediately take over, ensuring an uninterrupted power supply.
- Case 2. If both MP1 and MP2 fail, GEN1 (Generator 1) and GEN2 (Generator 2) will immediately take over, maintaining uninterrupted power.
- Case 3. If either GEN1 or GEN2 fails, GEN3 (Generator 3) will take over to ensure continuous power.
- Case 4. If UPS1 (Uninterruptible Power Supply 1) fails, UPS2 will seamlessly take over, ensuring uninterrupted power supply.
Monitoring and Predictive Maintenance. Advanced monitoring tools such as EDSC provide real-time insights into the health of electrical systems, including UPS units, diesel generators, and circuit breakers. These tools enable predictive maintenance, detecting and addressing potential issues before they lead to failures. This proactive approach minimizes unplanned downtime, optimizes system performance, and extends equipment lifespan, ensuring cost efficiency and reliability.
The Future of Tier III Data Centers
As businesses increasingly prioritize data integrity, availability, and security, the demand for Tier III data centers is set to rise. These data centers provide the robust infrastructure necessary to ensure near-continuous service, which is critical in a world that relies heavily on uninterrupted access to data. With the rapid expansion of digital transformation, cloud computing, and the Internet of Things (IoT), the role of Tier III data centers in supporting enterprise IT operations, applications, and services has never been more important.
Advancements in power management technologies are helping to make Tier III compliance more attainable and cost-effective. Modular UPS systems, for example, offer scalability, allowing data centers to incrementally increase their power backup capacity as needed. This modularity reduces both capital expenditure and operational costs, making Tier III facilities more accessible to a wider range of organizations. Additionally, energy-efficient cooling solutions, such as in-row cooling and liquid cooling systems, are playing a critical role in reducing the energy footprint of Tier III data centers. These innovations contribute to lowering operational costs while maintaining the high reliability expected from a Tier III facility.
Designing an electrical system that meets the Uptime Tier III standard is not merely a technical requirement but a critical strategic investment in the resilience, reliability, and long-term success of data center operations. By focusing on redundancy, fault tolerance, and easy maintainability, organizations can strike a harmonious balance between operational performance, cost-efficiency, and risk mitigation. A well-designed Tier III electrical infrastructure ensures that the data center remains operational even during maintenance or in the event of power disruptions, minimizing downtime and preserving the integrity of mission-critical systems.
As the digital landscape continues to evolve, data centers that adhere to Tier III standards will play an increasingly pivotal role in supporting global business operations, cloud services, e-commerce, and more. The growing reliance on data-driven technologies means that ensuring uninterrupted access to data and applications is more important than ever. Investing in Tier III-compliant electrical systems offers companies the peace of mind that comes with knowing their data centers can withstand challenges, adapt to future needs, and offer a high degree of fault tolerance without compromising on performance.
Ultimately, data centers that adopt the Uptime Tier III standard are not just future-proofing their operations—they are building the foundation for a more resilient, efficient, and sustainable digital ecosystem. This commitment to high availability ensures that businesses, governments, and institutions can continue to thrive in an increasingly interconnected world, where downtime is not an option and continuous innovation is a priority.
—Nguyen Cong Sang is lead electrical designer with CTCI Vietnam, an affiliated company of CTCI Group.
