Power System Protection with Digital Overcurrent Relays

Power System Protection with Digital Overcurrent Relays

Power systems today operate in an environment where reliability and safety must be maintained despite rising loads, expanding interconnections, and increasing dependence on distributed energy resources. One of the most important technologies that supports this stability is the digital overcurrent relay. Although relays have existed for generations, the modern digital version has reshaped how engineers detect abnormal current conditions and protect equipment across both transmission and distribution networks. These relays apply complex logic, communicate with other intelligent devices, and respond with the precision necessary to isolate faults before they escalate into wider system disturbances.

A digital overcurrent relay constantly measures current and compares it with its programmed pickup values. When current reaches or exceeds a threshold, the relay determines the fault severity and decides whether to issue a trip signal to the circuit breaker. Behind this simple concept lies a layered system of protection principles that distinguishes normal variations from dangerous conditions. Instantaneous overcurrent protection responds immediately to very high fault currents, clearing severe faults before they inflict mechanical or thermal stress on equipment. Time-overcurrent protection, on the other hand, operates with a calculated delay so that devices closest to the fault can act first. This ensures selectivity within the system, allowing only the protective device nearest to the fault to interrupt the circuit while upstream devices remain in service.

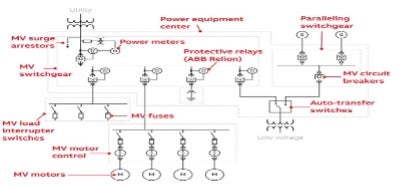

This is a one-line diagram of a medium voltage (MV) power distribution system. Source: Sree Lakshmi Vineetha Bitragunta

Inverse-time characteristics such as IDMT curves contribute significantly to the effectiveness of modern relays. These curves reduce the relay operating time as the fault current increases, while still maintaining a minimum time limit for stability. This relationship creates a natural coordination structure where downstream relays act quickly for local faults, and upstream relays operate only if the fault is not cleared. Protection engineers devote extensive attention to selecting curve types, setting pickup values, adjusting time dials, and calculating coordination margins. Even small variations in fault current calculations, impedance values, breaker operating times, or CT performance can influence the final settings. Developing proper coordination requires engineers to build and analyze time-current characteristic plots that visually confirm the selectivity and grading across feeders and substations.

IDMT and relay coordination curves showing faster tripping at higher fault currents and proper grading between downstream and upstream devices. Source: Sree Lakshmi Vineetha Bitragunta

The engineering work behind these protection schemes begins long before the relay is placed into service. Engineers model the system using specialized software and conduct short-circuit studies to determine fault levels for different fault scenarios. These studies provide the foundation for defining pickup thresholds and choosing time characteristics. Once relay settings are proposed, engineers evalu
