Third Generation: The Extended Automation DCS
Today’s power generators are faced with intense pressure to improve production reliability and bottom line profitability. As a result, current business goals focus on increasing operational efficiency and overall equipment effectiveness (OEE). In support of OEE — a tool used to identify production loss and asset availability — third-generation DCS employ powerful object-oriented design technology to enable efficiency improvements within daily operations and maintenance (O&M) activities.
Additionally, advanced process optimization technology is added to support improvements in process efficiencies such as power plant heat rate. Asset optimization is available to improve production reliability through improved process stability as well as through asset monitoring for predictive maintenance. Control system technology also now integrates several fieldbus protocols, thus enabling more flexible plant designs as well as improved data for maintenance. An example of a third-generation DCS is ABB’s Industrial IT System 800xA.
Aspect System Technology. Embedded within the 800xA DCS system’s platform core is a new object-oriented technology called an "aspect system." Aspect system technology provides an enterprise-wide data management tool within the DCS operator’s console. It allows plant O&M information to be directly linked to DCS graphical objects. This means users with secure access to the DCS screens (such as plant operators, maintenance personnel, and managers) can get personalized views of important plant information. Providing the right information to the right person at the right time for informed decision-making saves time and thereby improves operational efficiency.
"Aspect links," which are simple, menu-driven links to O&M information, can be launched via mouse click from DCS graphical objects, alarm points, or a controller configuration drawing (Figure 1). Aspect links of interest to plant operators may include alarm decision system information, operational help screens, live video feeds, start-up instructions, and trends. Links of interest to instrumentation and control personnel may include detailed troubleshooting information such as plant piping and instrumentation drawings, equipment O&M manuals, application guides, and smart device management tools. Links used by maintenance management may include work orders, fault reports, or spare part inventories.

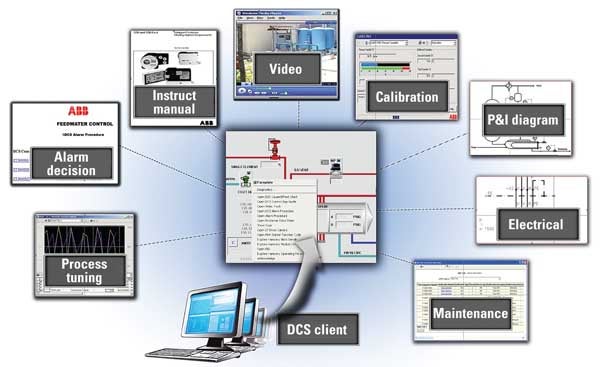

1. Linked up. Improving the efficiency of plant operations and maintenance, the 800xA distributed control system (DCS) provides aspect link technology for navigating to important plant information from DCS client screens. Source: ABB
Permissions can be configured to manage individual views into the aspect links, thereby ensuring that system users can only view information relative to their specific job function.
Process Optimization and Asset Optimization. To support the goal of increased plant process efficiency, advanced control can be added to the DCS using model predictive controller (MPC) technology. The MPC approach provides a multi-variable algorithm that runs at a much higher frequency than earlier optimization techniques (typically, cycle times are measured in seconds, rather than minutes). The result is an accurate process model that can be added to base system controls to produce less variability and smoother transitions. Less variability typically enables processes to operate closer to equipment design limits, therefore enabling significant improvements in steam temperature, ramp rate, heat rate, situations with complex coordinated control, and reduced emissions.
Asset optimization, now available within most third-generation DCS designs, facilitates increased OEE and avoids unplanned shutdowns, thereby increasing plant availability. Asset optimization can also extend the life of plant assets by using advanced predictive maintenance techniques. For plant assets, a logical analysis function called the "asset monitor" provides 24/7 supervision of the plant device or process. Assets that can be monitored include DCS components, communication networks, smart instrumentation, process control loops, pumps and drives. Power plant processes such as feedwater heaters, water quality, and heat exchangers can also be monitored. Asset monitor options can be scaled to include any number of assets, from plant to fleet
By applying object-oriented technology, asset optimization is seamlessly integrated with commercially available computerized maintenance management systems (CMMS). From the DCS process graphics, plant maintenance staff can get an asset management view of the plant to access work orders, spare part inventories, and maintenance activities. They can also rely upon the DCS to identify problems and automatically generate a fault report for automated download back into the CMMS.
Expanded Connectivity for Process Control. Third-generation DCS controllers and I/O hardware occupy much smaller footprint than earlier systems. DIN rail components operate using 24VDC and can be routed via redundant fiber optic networks. This makes for a more scalable solution, as it is much easier and economical to physically distribute clusters of remote I/O throughout the plant. DCS controller technology has also evolved to support SIL 2 and 3 standards for safety as well as the traditional National Fire Protection Association 85 requirements applied to many utility applications.
Integrated fieldbus is a significant third-generation DCS enhancement. In particular, bussed communication reduces field wiring, and provides beneficial data for asset management. Because the technology allows mixing bus protocol connections within a common controller, it gives plant designers great flexibility for plant layout and final control element device selection. Today’s control systems support the integration of many protocols, including Profibus, Foundation Fieldbus, Device Net, and IEC 61850.
IEC 61850 is a recent development that is used for electrical system integration into the plant DCS. With capabilities of integrating intelligent electrical devices (IED) for control and asset monitoring and device management, the IEC 61850 standard is emerging with connectivity options for protection relays, drives, medium- and high-voltage switchgear, and other equipment. Also, specifically for power plant applications, DCS controllers can integrate field-bussed specialty cards for turbine control (overspeed, auto synch, and valve position), vibration condition monitoring, and flame scanners.
Finally, thought they’re not classified as fieldbus protocols, the highway-addressable remote transducer (HART) and Modbus over Ethernet have also been more tightly integrated into the third-generation DCS controller level (Figure 2).

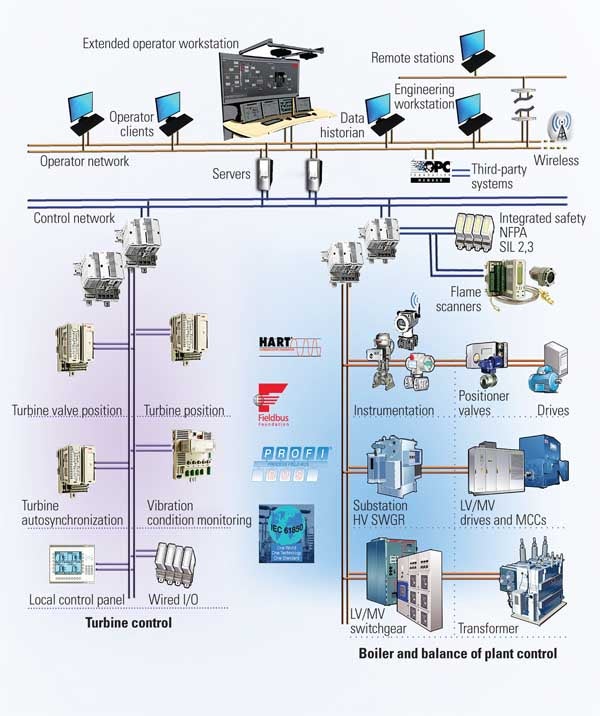

2. Extended automation DCS. Third-generation distributed control systems offer many options for connecting plant process instruments and devices using fieldbus, Ethernet, and wireless technologies, as well as through traditional hardwired I/O systems. Source: ABB
Engineering Tool Enhancements. The DCS software interface employs object-oriented technology to provide user-definable "library objects." This approach allows complete control strategies — such as motor-operated valve control, faceplate, graphic element, and aspect links — to be packaged into a single library object that is available as an element within the project library.
As an object is used repeatedly throughout a project, it maintains its reference "inheritance" to the original library object. This allows for a consistent design approach for all similar plant devices and also simplifies maintenance of control configurations when code modifications are required. Control programming methods are available to support function blocks from previous first- and second-generation DCS systems as well as IEC version function blocks, ladder logic, instruction list, structured text, and sequential flow charts.
Improved Power Plant Simulators. When used for operator training, simulator systems typically provide a substantial opportunity to improve plant operational efficiency and expertise. Simulators can also serve as testing grounds for verifying DCS logic changes. In earlier DCS generations, power plant simulators offered controller hardware-based "stimulated" or PC "emulated" simulators. The latest DCS simulator technology provides a "virtual controller" PC-based environment for running the original equipment manufacturer (OEM) version of the controller configuration.
The virtual controller is easier to maintain than the previous-generations’ hardware-based stimulated simulators. Furthermore, when combined with the OEM HMI and actual operator process graphics, the virtual controller approach provides the most realistic simulation system environment and can be easily coupled to a range of low- to high-fidelity simulation process models.
